KONNWEI Multilingual Menu Car Diagnostic Tool KW808 with OBD2 Scanner EOBD Auto Code Reader KW808 Scanner Automotive

Specifications:

Product Overview:

• Work on all 1996 and later OBDII compliant US, European and Asian vehicles
• Retrieves generic ( P0, P2, P3, and U0 ) and manufacturer-specific ( P1, P3, and U1 ) codes
• Easily determines the cause of the Check Engine Light ( MIL )
• Display monitor and I / M readiness status ( emissions )
• Memory/battery backup for off-vehicle data review and analysis
• Supports CAN ( Controller Area Network ) and all other current
• Built-in OBD-II DTC lookup library
• Multilingual menu: English, Spanish, French, German, Dutch
• Displays DTC definitions on the unit screen
• Displays live O2 sensor test data
• Large easy-to-read backlit LCD screen

Vehicle Covered:

• For G   M ’96 – Current Year (OBD-II)
• For Ford ’96 – Current Year (OBD-II)
• For Chrysler ’96 – Current Year (OBD-II)
• for Toyota ’96 – Current Year (OBD-II)
• for Honda ’96 – Current Year (OBD-II)
• For NISSAN ’96 – Current Year (OBD-II)
• All other Asian and European ’96 – Current Year (OBD-II)

KW808 Support Car:

If your car satisfies the following two conditions, 98% you will not face any problem:

• Your car engine work on 12V
• American car after the 1996 year
• European and Australian car after the 2000 year
• Asian car after the 2005 year

If your car satisfies the conditions and the ECU support standard OBD2 / EOBD protocols, it will be 100% you will not face any problem

KW808 Support Protocols:

• ISO9141-2(5 baud init,10.4Kbaud)
• ISO14230-4 KWP(5 baud init,10.4Kbaud)
• ISO14230-4 KWP(fast init,10.4Kbaud)
• ISO15765-4CAN(11bit ID,500 Kbaud)
• ISO15765-4CAN(29bit ID,500 Kbaud)
• ISO15765-4CAN(11bit ID,250 Kbaud)
• ISO15765-4CAN(29bit ID,250 Kbaud)
• SAE J1850 PWM (41.6 Kbaud)
• SAE J1850 VPW (10.4 Kbaud)

Features:

• High quality 100% brand new.
• This scanner supports all nine OBDII test modes on all OBDII compliant vehicles to enable technicians to accurately diagnose even the toughest problems. Sophisticated yet easy to use, this ergonomic scan tool makes your vehicle service experience much more pleasant.

Technical Parameters:

• Operating temperature: 0 to 60°(30 to 140°)
• Storage Temperature: -20 to 70°( -4 to 158°)
• External power: 8 – 18V power provided via vehicle battery
• Internal Power: 9V
• Display: Backlit, 128 x 64-pixel display with contrast adjustment
• Dimensions: 7 x 3.7 x 1.4 inch
• Cable length: About 56 cm
• Material Type:  Rubber Plastic

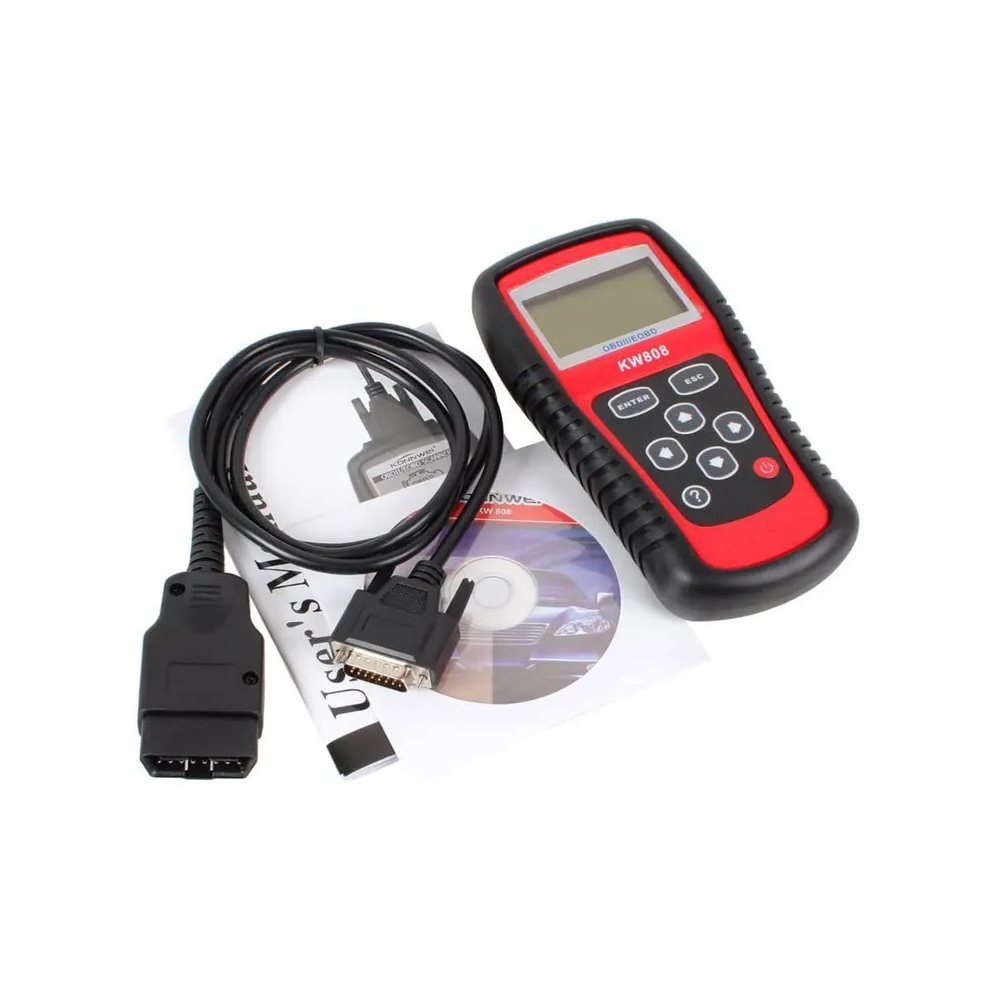

Package Included:

• Scanner x 1

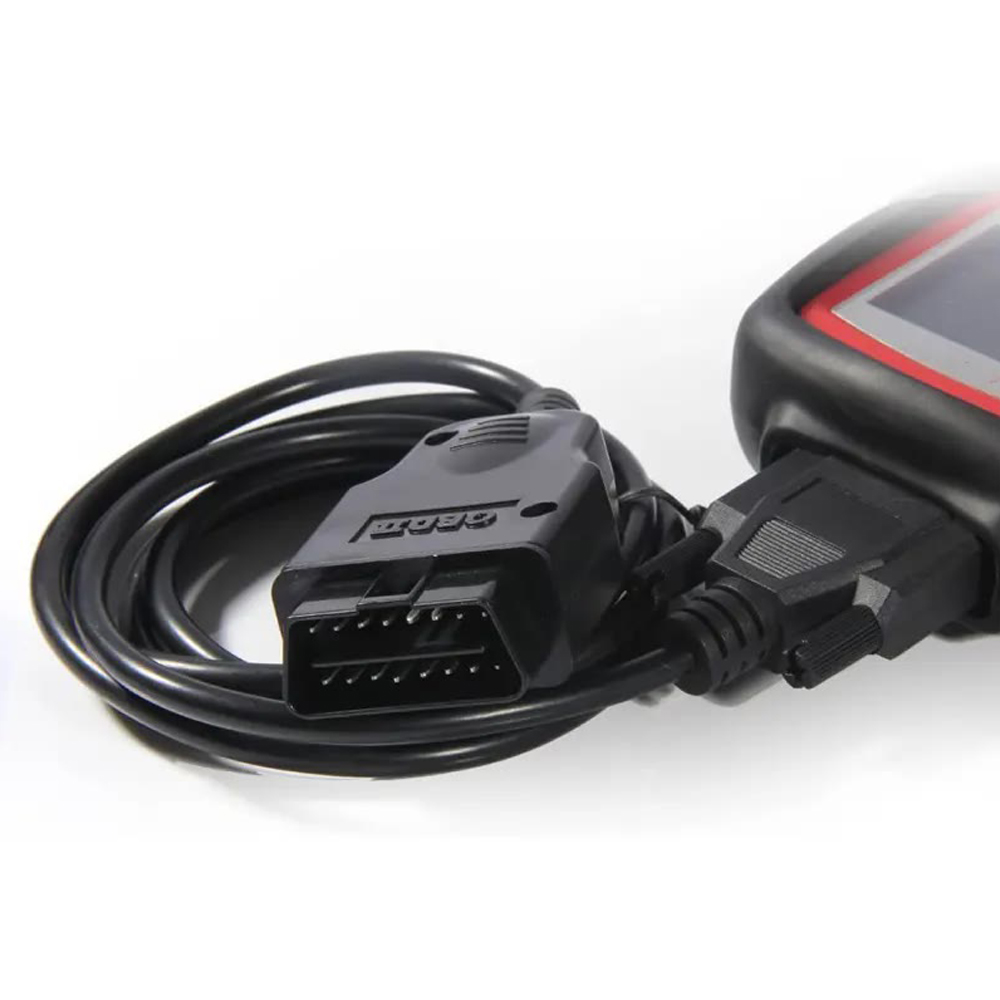

• Cable x 1
• CD software x 1
• Nylon carry case x 1
• User manual x 1
