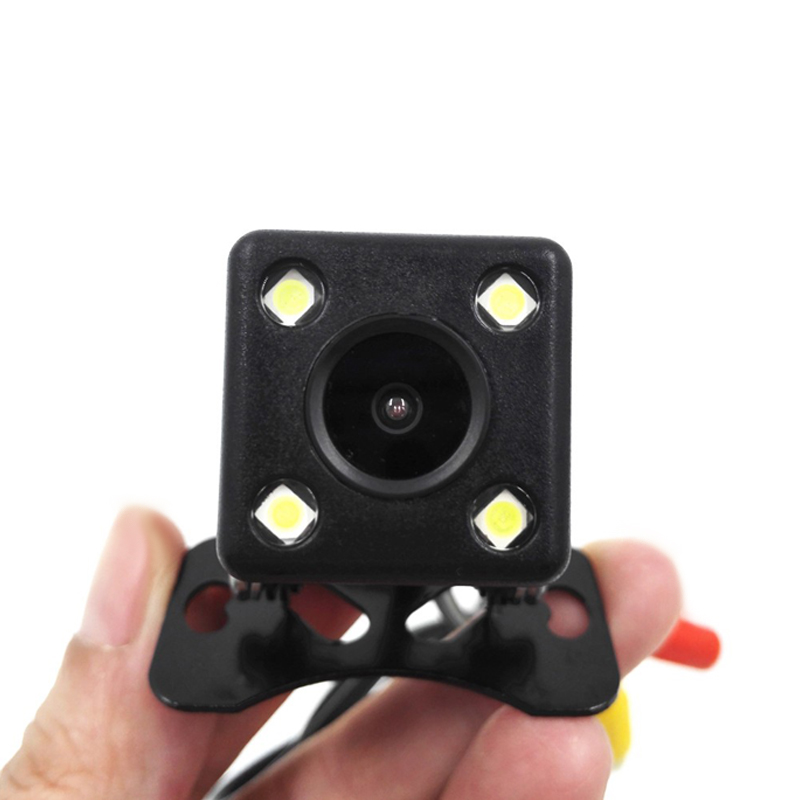

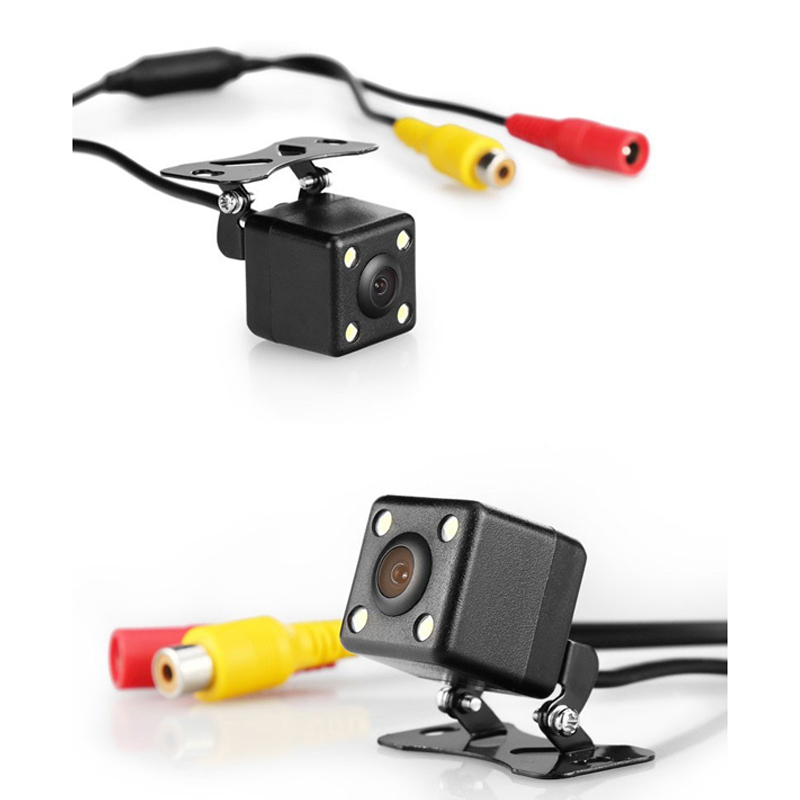

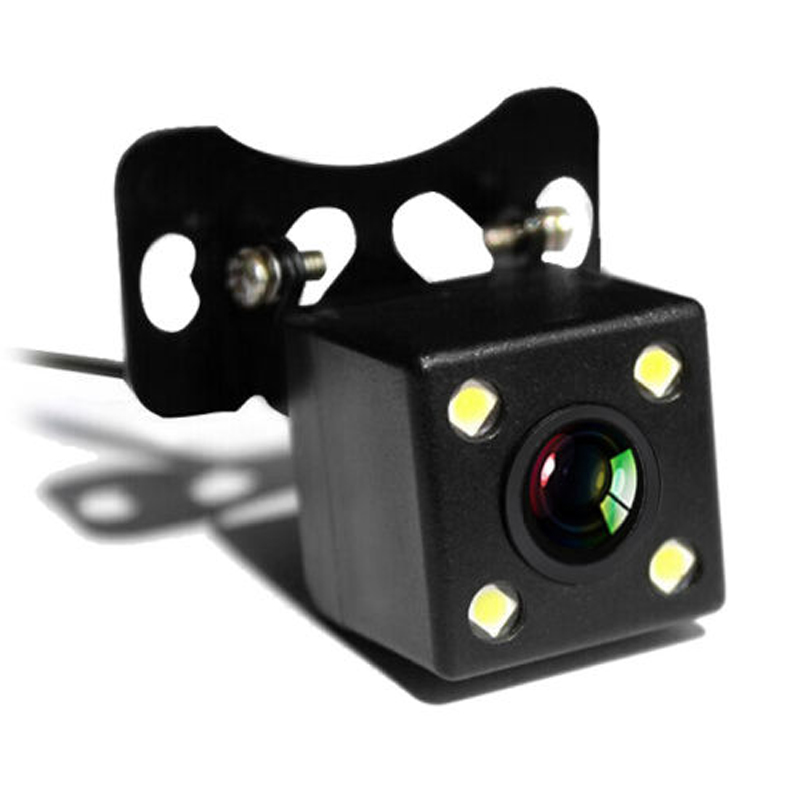

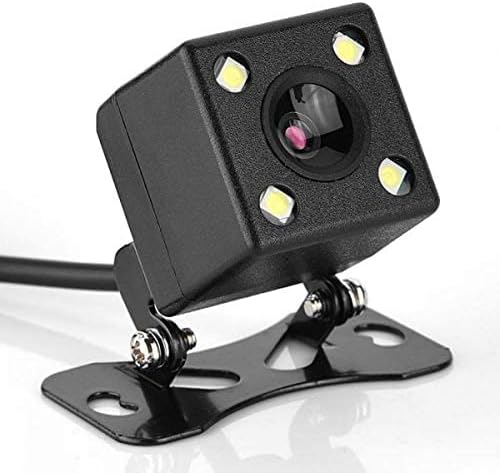

Camera Night Vision Butterfly For Car Parking

Item specifics:

Camera Night Vision Butterfly 120-degree backup camera is produced specifically for the purpose of being attached to the rear of a vehicle to aid in backing up, and to alleviate the rear blind spot.
With 120-degree wide viewing angle, it could help you avoid a backup collision effectively. 4 LED lights will make sure that you could reverse the car safely in the dark place.
Don’t be afraid to reverse the car, this reversing camera makes you become an experienced driver.

Main features:

1. Strengthen night vision effect
With 4 LED lights for night vision, and night vision distance up to 3m, give you a better performance in dark space to ensure safe driving
2. Wide viewing angle
120-degree viewing angle makes sure that you can see enough to park or reverse safely, works great in blind areas, perfectly solve the issue of bad car rear view effect, can reduce incidents and accidents greatly
3. Friendly design
IP67 waterproof and shockproof ABS material ensures that it could be used in the bad weather or harsh environment. Small compact size, great resolution and lower consumption, which promise its durability
4. Adjustable pedestal
Adopt butterfly-shape pedestal, could be adjusted 90 degree, increase a larger force bearing area so that the camera can be firm in the rear

Performance parameter:

– Sensing area: 1/4 3.63 x 2.73mm
– Gamma value: 0.45
– Working voltage: DC 12V
– Power consumption: 0.4W
– Night version distance: 3m
– Camera cable: 50cm
– Video cable: 600cm
– Working temperature: -20 – 75 Deg.C
– Relative humidity: 95 percent



Specifications:

Type: Rear View Camera
Waterproof level: IP67
Power Cable Length: 105cm
Camera
Night vision : Yes
Camera Pixels: NTSC: 720 x 576DPI, PAL 720 x 487DPI
Lens angle: 120 degree
LED Quantity: 4
Connectivity: Wire
Video format: NTSC,PAL
Minimum Illumination: 0.05Lux
Scan frequency: NTSC: 60 field / sec, PAL: 50 field / sec
White Balance: Auto
S/N Ratio: more than 50dB
Dimension and Weight

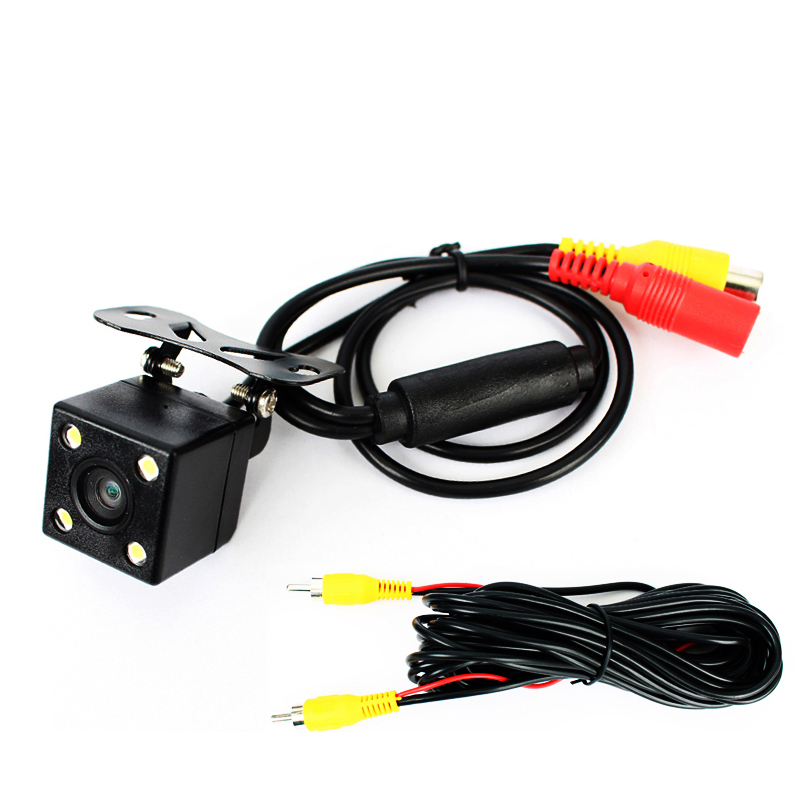

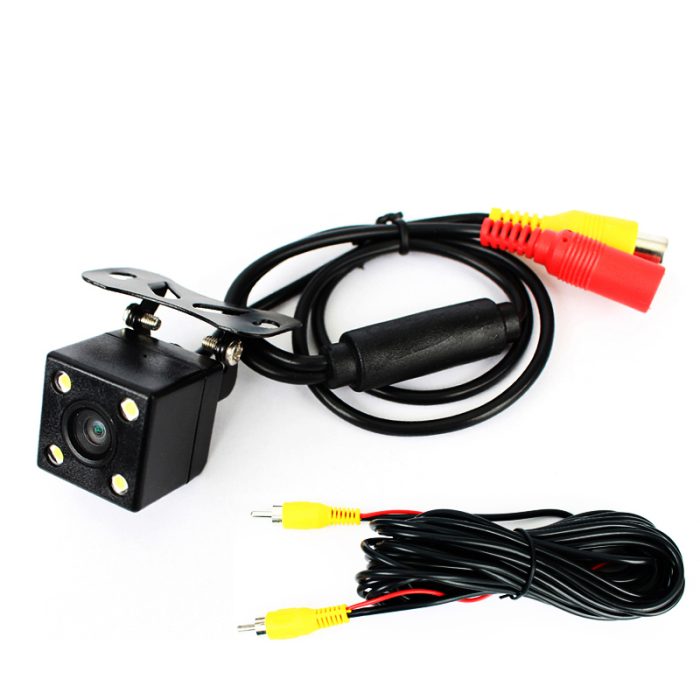

Package Included:

Package Content:
1 x Car Rear View Camera
1 x Video Cable
Power Cable
1 x User Manual
2 x Screw



Details:
