180W Electric Hydraulic Car Jack 5 Ton, 12V with Built-in Tire Inflatable Pump, Safety Hammer for Car Tire Repair Tool Kits, 2 Ways Car Power Supply, LED Light

Product Video:

Specifications

Electric Jack Parameters

Wrench Function Specification

Features:

• EFFICIENT: Work with 12v vehicle outlet, 5T (11000lb) jack capacity. The car can be lifted in less than 1 minute by the jack, the tire screws can be removed and installed quickly by the wrench and the tire can be inflated automatically by the pump.
• SAFE & CONVENIENT: Built-in safety device prevents the jack from falling even out of power and the jack will stop working automatically when reaching the height limit. The design of the jack is succinct and compact, easy to go with the portable box for transport and storage.
• MULTIFUNCTION: This multi-functional jack set is designed to make your work easier and more efficient, it includes tools that you need for a daily normal tire repair. The package box is designed with a warning triangle which can act as a warning sign. Worth having this set for any emergency

5 Ton Electric Hydraulic Jack with Impact Wrench

• Electric jacks use

  • Park the car on a level road and turn off the engine. Do not forget to tighten the handbrake.
  • Place the electric jack on the steel beam under the body near the replaced tire, align the top cap of the electric jack with the support point below the vehicle body so that the electric jack can be safely and effectively hoisted.
  • Connect the electric jack to the 12V power supply in the following two ways

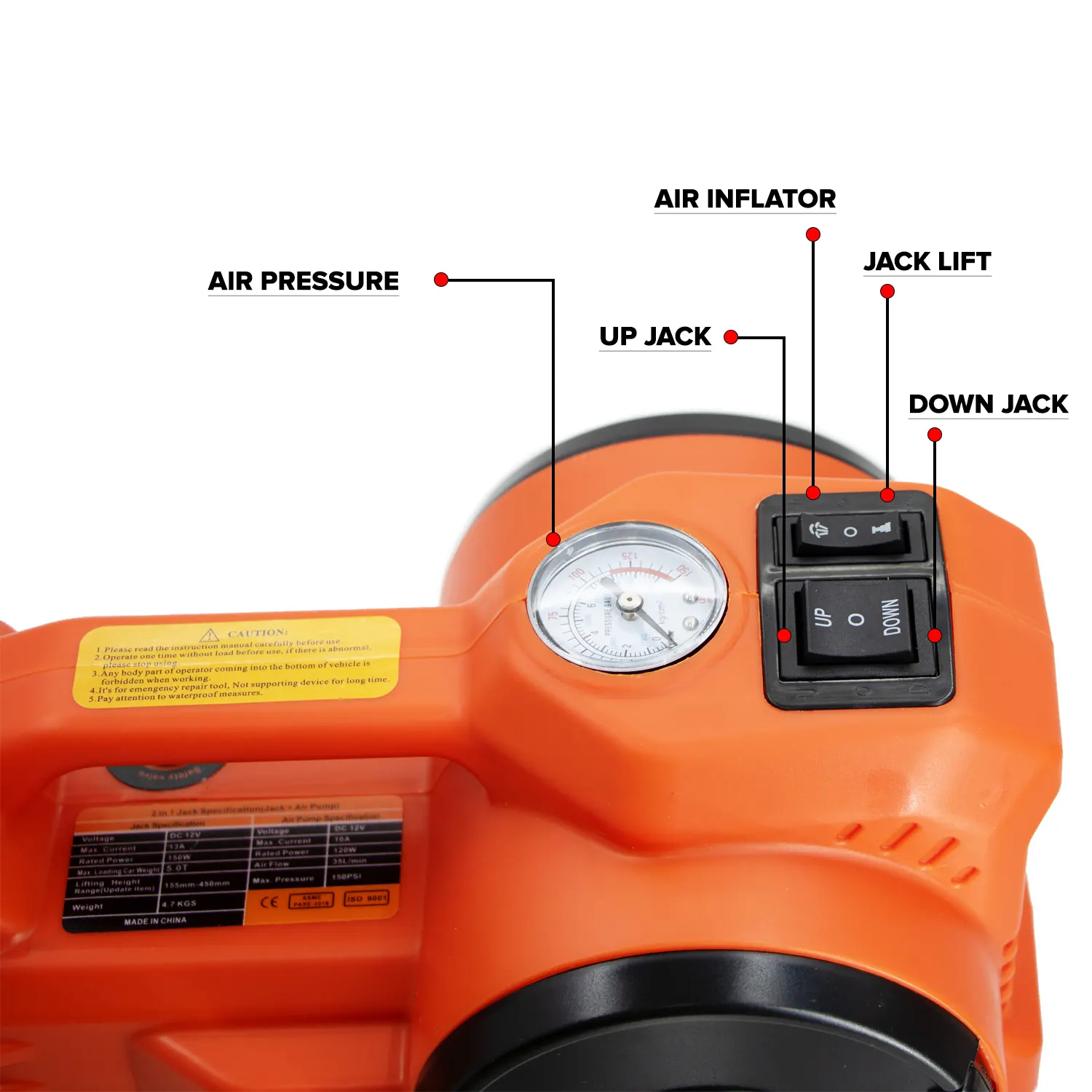

  • Operation: After confirming that the first few steps are completed, you can start the lifting operation. Hold the remote control, and press the button on the remote control as needed. “△” means increase, “▽” means decrease, “□” means stop. )
  • During the lifting process, the lifting dynamics should be carefully observed to ensure that the electric jack does not tilt until the wheel is separated from the ground by 20mm. When the wheels can rotate freely, the lifting should be stopped and the tire replaced.

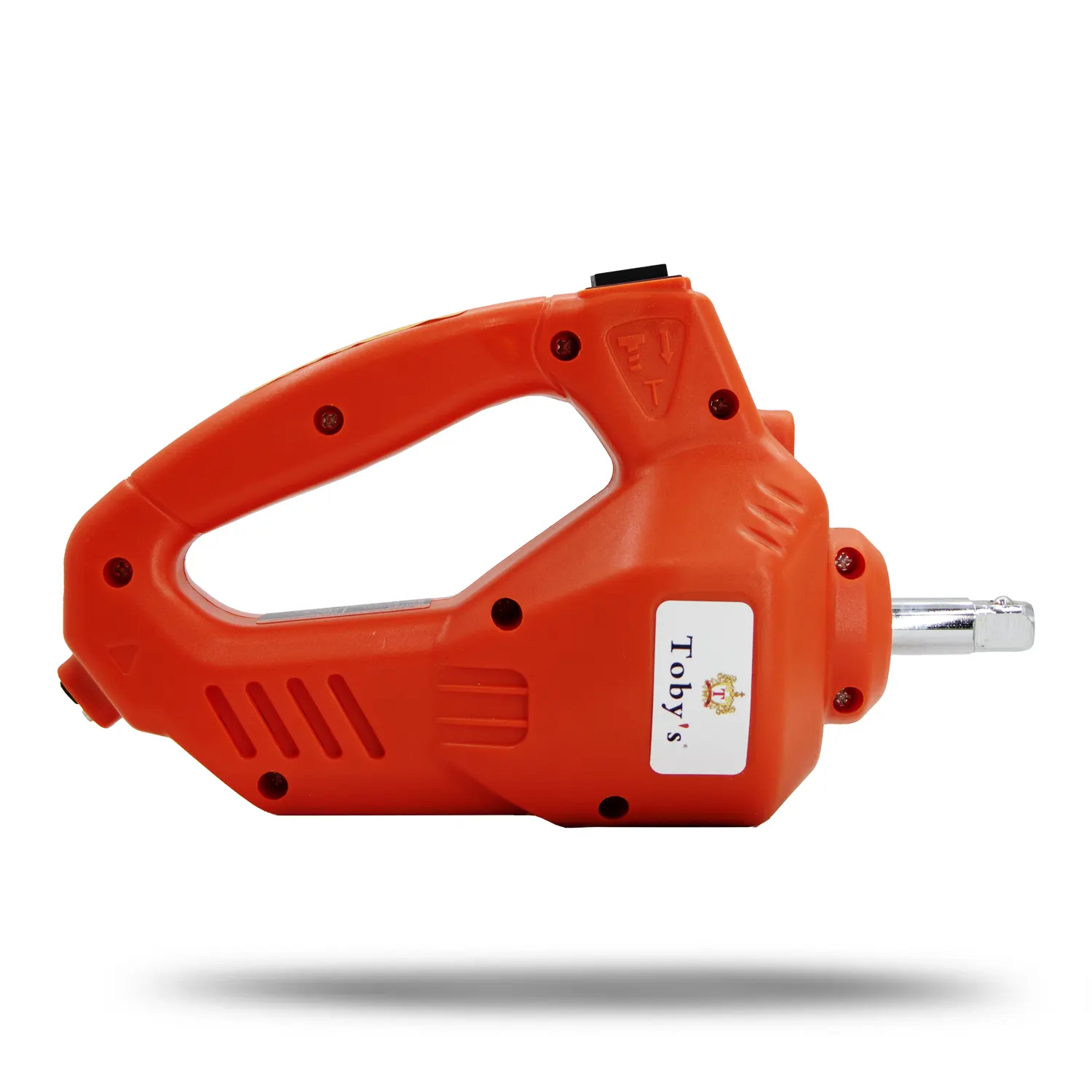

• Electric wrench use

  • When the replaced wheel leaves the ground, connect the electric wrench to the power supply (connect the 5.5mm power plug of the electric wrench directly into the 5.5mm plug connector of the cigarette lighter plug wire).
  • Select the appropriate sleeve and place the square hole on the square shaft head at the top of the electric wrench to loosen or tighten the bolt.

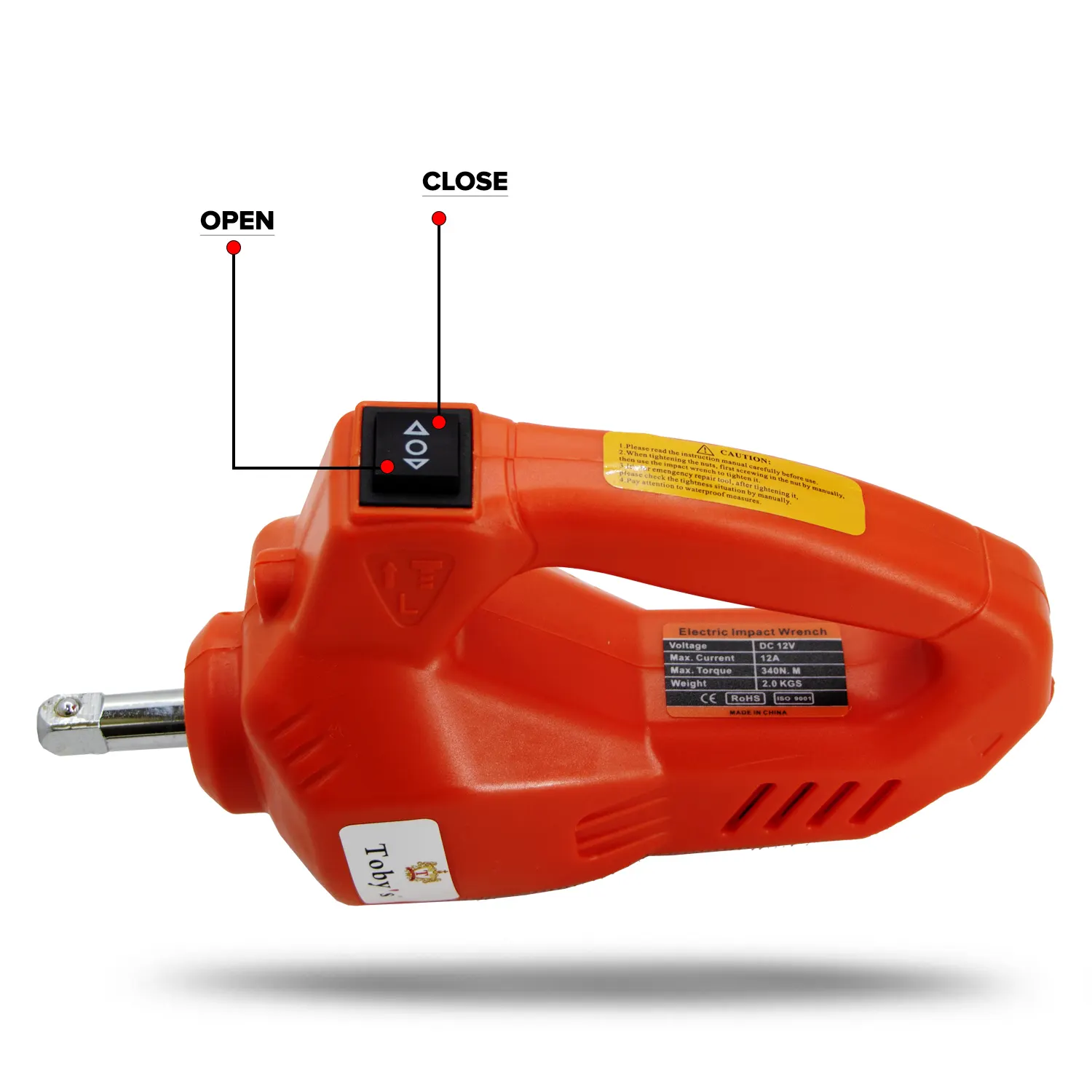

• According to the desired working direction, select the loose and tight switch. The left sign “‖” of the power switch is the reverse direction, the right sign “∣” is the forward direction, the middle sign is “○”, and stopped. Press the corresponding direction switch with your thumb, and you can release the thumb after hearing 1-2 “bang and bang” percussions. The whole process takes about 2-3 s.

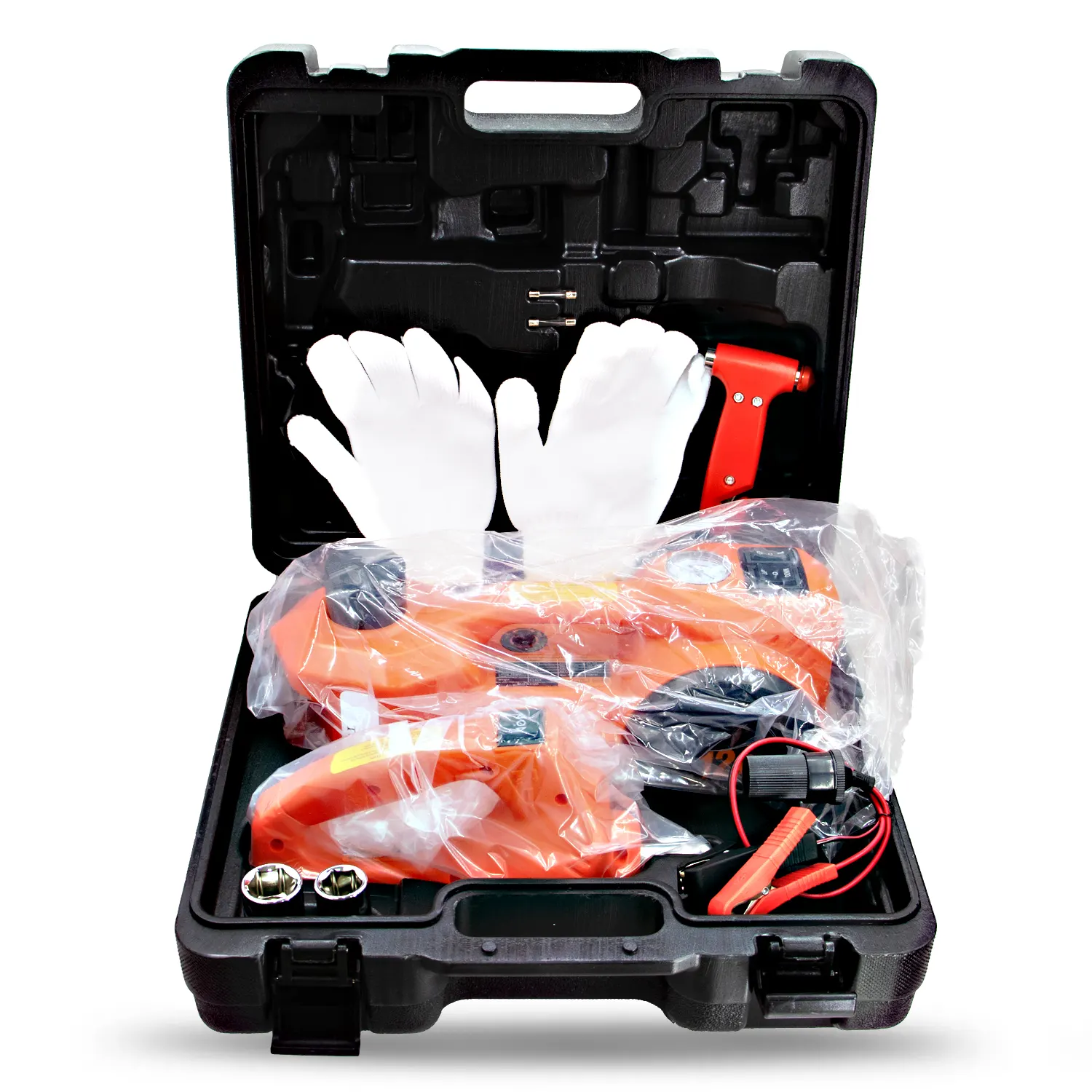

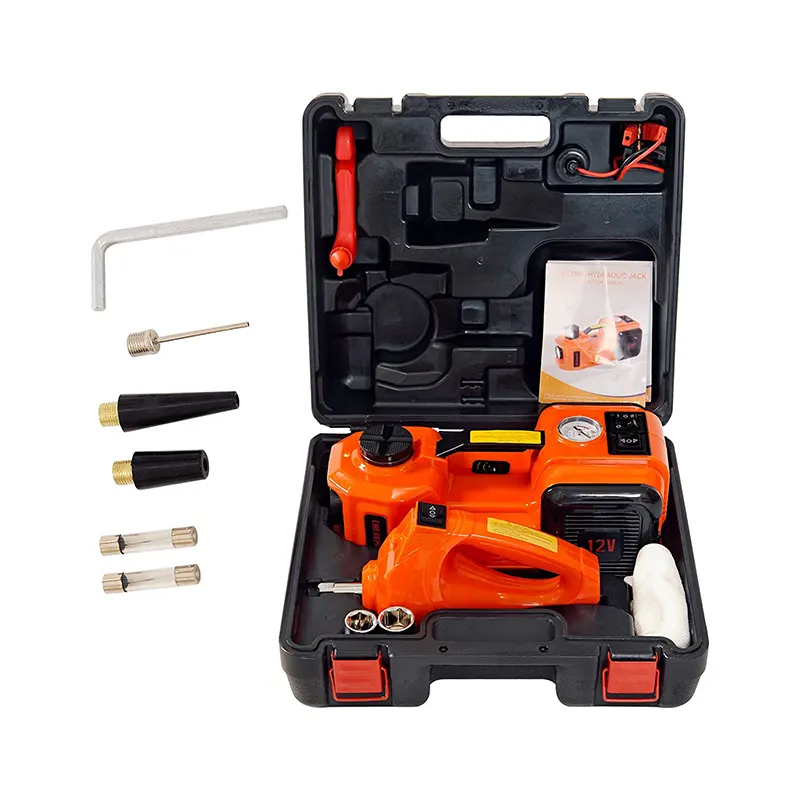

Packing List

• Electric Jack
• Electric Impact Wrench
• Safety Hammer
• Plastic Tool Box
• Battery Clamp Connecting Cable
• Gloves
• Power Cable
• Socket Adapters
• Fuse
• Instruction

Parking the car

• Park the car in a safe and flat position, pull on the hand brake, and fix the wheels with tire pads or hard objects

Cable connects

• Firstly, connect the jack and the cigerette lighter power cord

Power supply

• Equipped with battery clips and cigarette lighter plug, which can be directly inserted into the cigarette lighter or connected to the car battery to get electricity.

Lift the car

• Place the electric jack under the car chassis bracket. Press the up button to lift the body until the wheels leave the ground; press the down button to lower the wheels

4 in 1 Hydraulic Car Jack 5 Ton 12V with Electric Impact Wrench

Inflate the tire

• Connect the pump to the tire, press the button to inflate the tire

Lighting

• Connect the power cord to get electricity, press the button to illuminate.

Power the electric wrench

• Connect the power cord of the electric wrench and the cigarette lighter

Change tire

• Choose the right sleeve according to the model, use the electric wrench to remove the tye nuts one by one.
